Allen-Bradley Kinetix VP Servo Motor VPL-B0753M-PJ14AA,Ser.A 0.82 kW, 480V, 8000 RPM

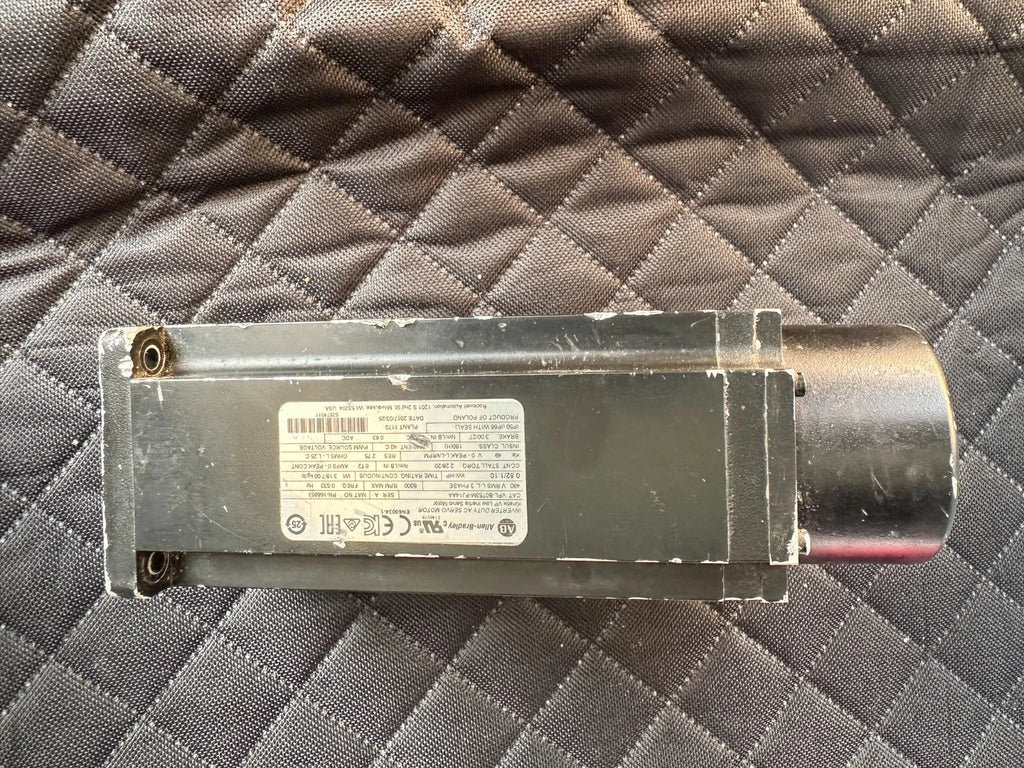

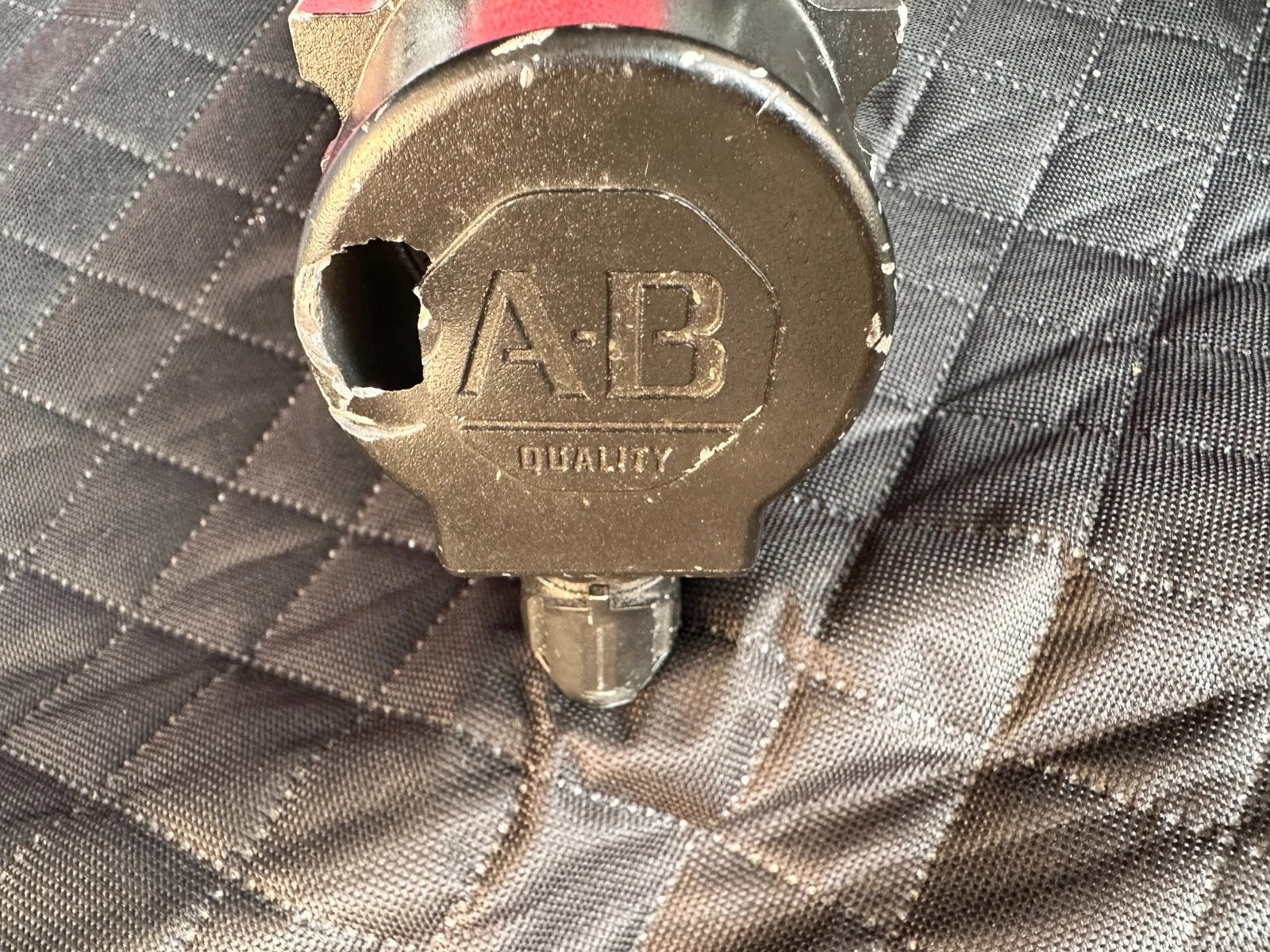

 The motor was tested at the service center.The bearings need to be replaced and the encoder needs to be adjusted.  There is a hole on the back cover of the motor. It can be seen in the last photo.  NO CLAIMS AND RETURN !!!!!!

Allen-Bradley Kinetix VP Low Inertia Servo Motor (Catalog No. VPL-B0753M-PJ14AA) is an inverter-duty AC servo motor designed for high-performance motion control applications requiring fast acceleration, precise positioning, and smooth operation.

This motor is optimized for use with Kinetix servo drives and modern motion control systems in demanding industrial environments such as packaging, robotics, material handling, and automated machinery.

Key Specifications:

• Product family: Kinetix VP

• Motor type: Low Inertia AC Servo Motor

• Catalog number: VPL-B0753M-PJ14AA

• Rated power: 0.82 kW / 1.10 HP

• Supply voltage: 480 V RMS, L-L, 3-phase

• Maximum speed: 8000 RPM

• Frequency range: 0–533 Hz

• Continuous stall torque: 2.28 Nm

• Peak current: 6.12 A

• Back EMF constant (Ke): 49 V peak L-L / kRPM

• Winding resistance: 2.75 Ω (L-L @ 25 °C)

• Insulation class: 180 (Class H)

• Ambient temperature: up to 40 °C

• Brake: Integrated holding brake (3.0 Nm)

• Protection rating: IP50 (IP66 with shaft seal)

• Duty rating: Continuous

• Weight: approx. 3.18 kg

• Country of origin: Poland

Applications:

• Servo-driven automation systems

• Packaging and labeling machines

• Robotics and pick-and-place systems

• CNC and motion control equipment

• High-speed positioning and indexing

The Allen-Bradley Kinetix VP servo motor delivers high torque density, precise control, and long-term reliability for advanced industrial motion applications.
