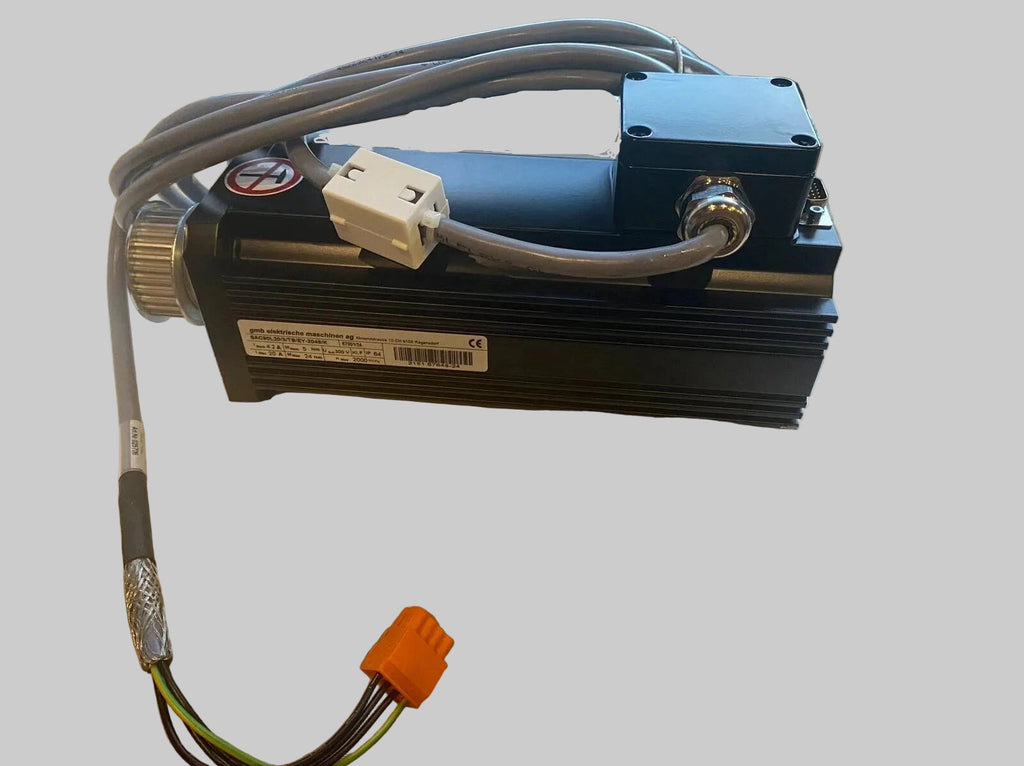

GMB SAC90L20/3/TB/EY-2048/K AC Servo Motor 300V 5Nm 2000rpm IP64

NEW. WITHOUT ORIGINAL PACKAGING.

The GMB SAC90L20/3/TB/EY-2048/K is a high-quality AC servo motor manufactured by gmb elektrische maschinen ag (Switzerland) for precision industrial motion control applications.

This motor delivers stable torque output and reliable performance in demanding automation environments.

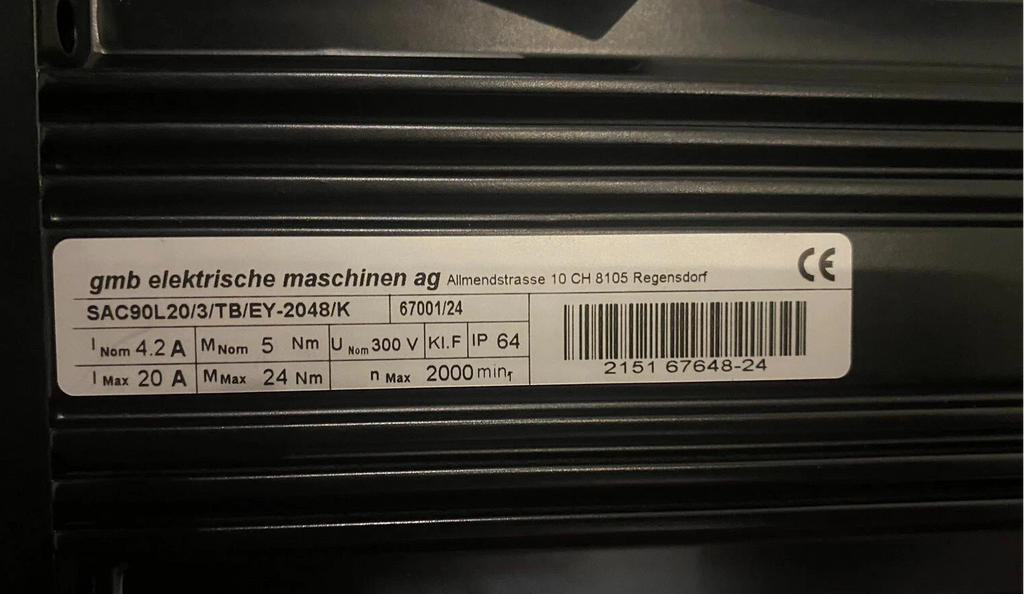

Key electrical and mechanical ratings (per nameplate):

• Nominal current: 4.2 A

• Nominal torque: 5 Nm

• Nominal voltage: 300 V

• Maximum current: 20 A

• Maximum torque: 24 Nm

• Maximum speed: 2000 rpm

• Protection class: IP64

• Insulation class: F

The motor is designed for closed-loop servo applications and typically operates with a compatible servo drive.

Key Specifications

• Manufacturer: gmb elektrische maschinen ag

• Model: SAC90L20/3/TB/EY-2048/K

• Type: AC Servo Motor

• Nominal Torque: 5 Nm

• Max Torque: 24 Nm

• Nominal Voltage: 300 V

• Nominal Current: 4.2 A

• Max Speed: 2000 rpm

• Protection: IP64

• Insulation Class: F

• CE compliant

Technical Highlights

• Industrial-grade housing

• High peak torque capability

• Designed for servo inverter operation

• IP64 protection against dust and splashes

• Encoder feedback (EY-2048 version)

• Suitable for continuous-duty automation

Typical Applications

• CNC machinery

• Automation lines

• Robotics

• Packaging systems

• Textile machinery

• Precision positioning systems
