Schneider Electric Altivar 340 ATV340U40N4 | 4 kW (5 HP) Variable Frequency Drive, 380–480 V

New. Without original box

The Schneider Electric Altivar 340 ATV340U40N4 is a compact, high-performance variable frequency drive (VFD) designed for advanced industrial machinery and automation systems. Rated at 4 kW (5 HP), this drive provides precise motor speed and torque control for pumps, conveyors, packaging machines, and material-handling equipment.

This model operates on a 380–480 VAC three-phase input and delivers a three-phase motor output up to 480 VAC with an adjustable frequency range suitable for demanding motion and process applications. The Altivar 340 series supports modern control architectures, integrated safety functions (depending on configuration), and fast commissioning via the local keypad and control terminals.

Manufactured in Indonesia, the ATV340U40N4 complies with CE, UL, and EAC certifications, making it suitable for global industrial installations. The IP20 protection rating is intended for panel-mounted use in control cabinets.

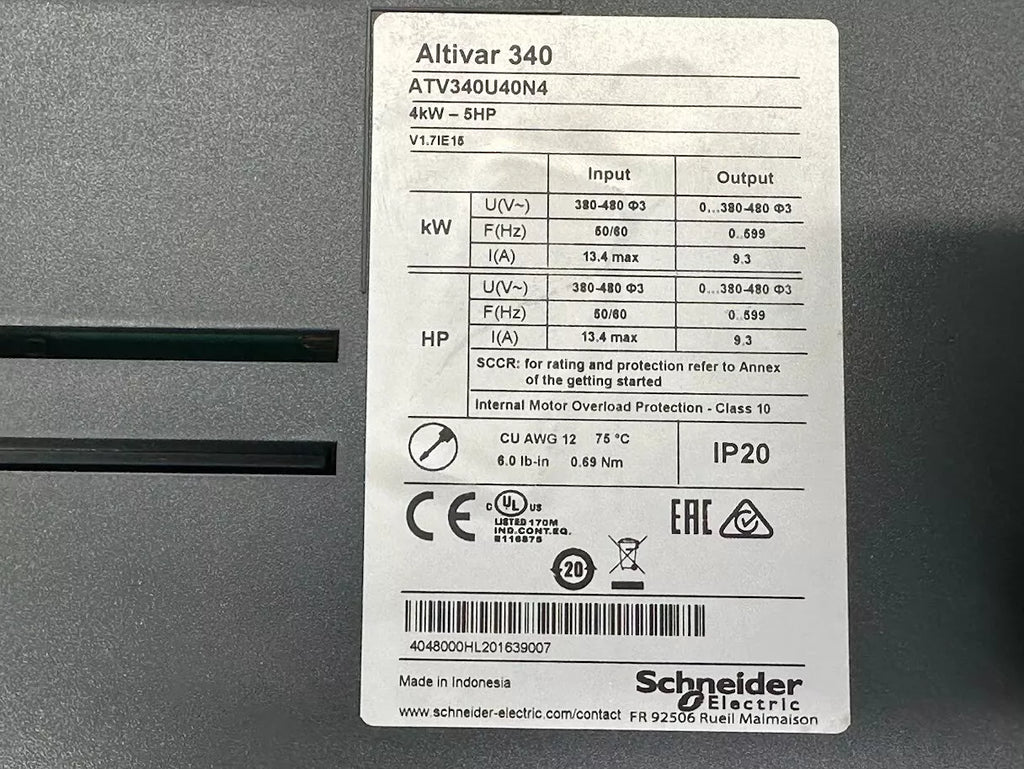

⚙️ Key Technical Specifications

• Manufacturer: Schneider Electric

• Product Line: Altivar 340

• Model / Catalog Number: ATV340U40N4

• Type: Variable Frequency Drive (VFD / Inverter)

• Rated Power: 4 kW (5 HP)

• Input Voltage: 380–480 VAC, 3-phase

• Input Frequency: 50 / 60 Hz

• Input Current: 13.4 A max

• Output Voltage: 0…380–480 VAC, 3-phase

• Output Frequency: 0…599 Hz

• Output Current: 9.3 A

• Overload Protection: Internal motor overload, Class 10

• Protection Class: IP20

• Certifications: CE, UL, EAC

• Mounting: Panel / cabinet mount
