SEW-EURODRIVE PSC222 CMP40M/KY/RH1M/SM1 Servo Planetary Gearmotor i=21.00 IP65 400V

NEW

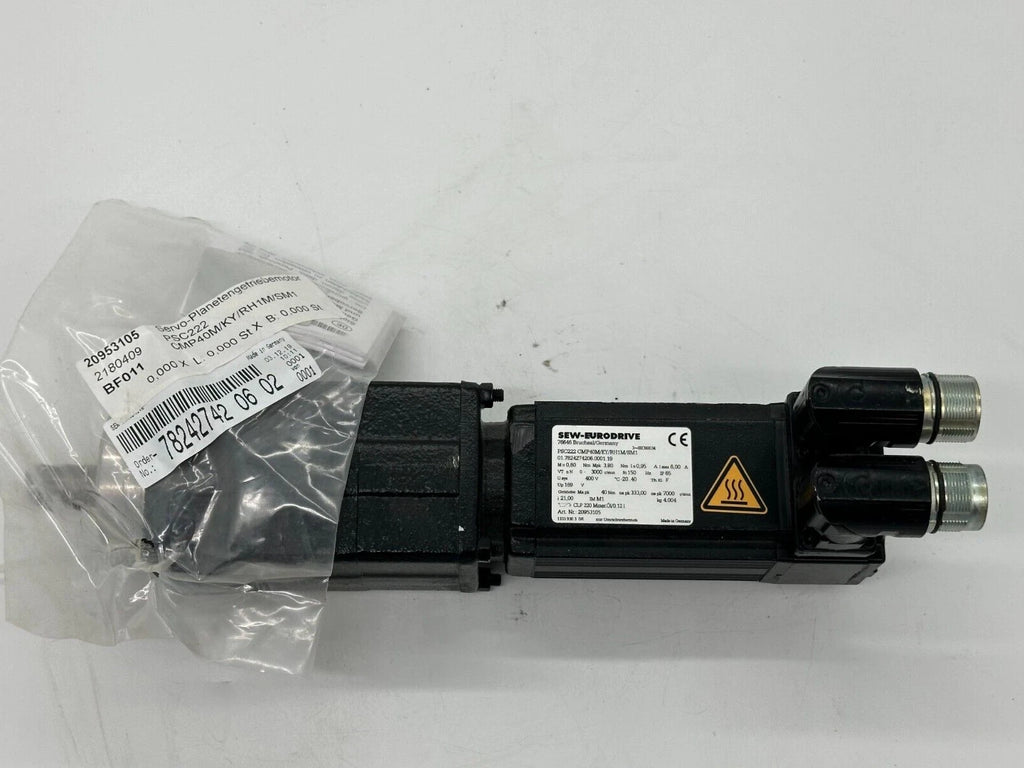

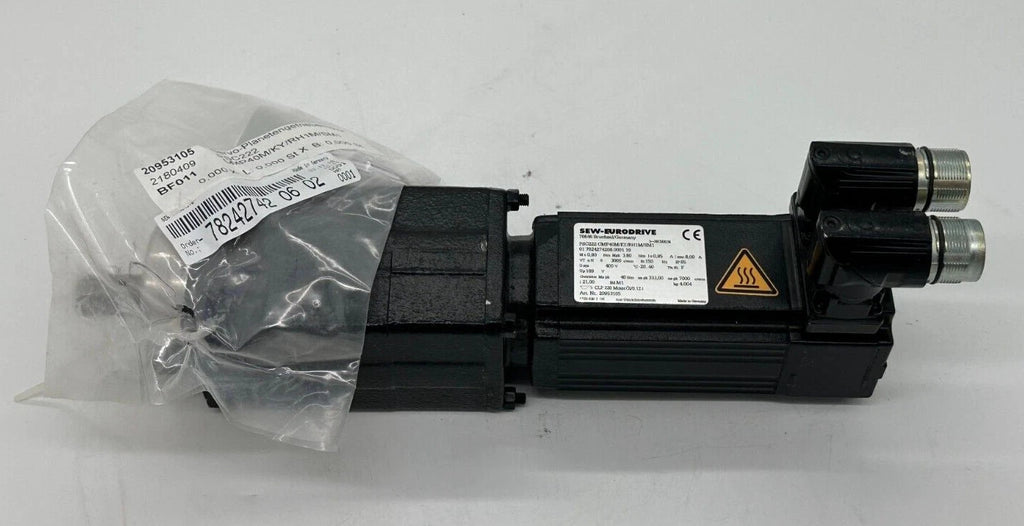

The SEW-EURODRIVE PSC222 CMP40M/KY/RH1M/SM1 is a compact servo planetary gearmotor combining a high-precision CMP40M servo motor with a PSC222 planetary gearbox in a single industrial unit.
This motor is designed exclusively for inverter operation (nur Umrichterbetrieb) and is intended for demanding motion-control applications requiring accurate positioning, controlled torque, and stable dynamic behavior.

Typical applications include industrial automation, handling systems, robotics, assembly machines, packaging lines, and servo-driven conveyor axes.

Manufactured in Germany (Bruchsal), the unit complies with IEC 60034, carries CE marking, and features a robust IP65 enclosure for industrial environments.

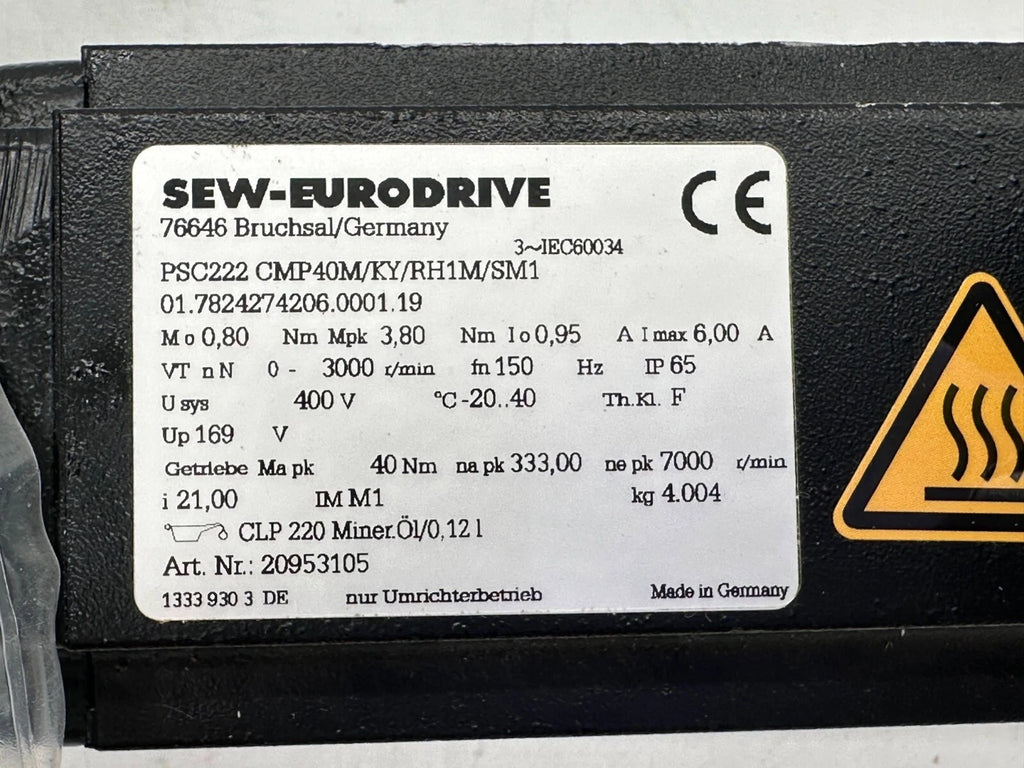

Full Nameplate Data (decoded)

Manufacturer

• Brand: SEW-EURODRIVE

• Address: 76646 Bruchsal, Germany

• Standard: 3~ IEC 60034

• Marking: CE

• Country of origin: Made in Germany

Type / Configuration

• Gearmotor series: PSC222

• Servo motor type: CMP40M

• Full configuration: PSC222 CMP40M/KY/RH1M/SM1

Identification Numbers

• Art. Nr. (Article Number): 20953105

• ID code: 01.7824274206.0001.19

• Production code: 1333 930 3 DE

Motor Electrical & Performance Data

Torque

• M₀ (Rated torque): 0.80 Nm

• Mpk (Peak motor torque): 3.80 Nm

Current

• I₀: 0.95 A

• Imax: 6.00 A

Speed / Frequency

• Speed range: 0 – 3000 rpm

• Rated frequency (fn): 150 Hz

Voltage

• System voltage (Usys): 400 V

• DC link voltage (Up): 169 V

Gearbox Data

• Gearbox peak torque (Ma pk): 40 Nm

• Gear ratio: i = 21.00

• Output speed limits:

  • na pk: 333 rpm

  • ne pk: 7000 rpm

• Mounting position: IM M1

Mechanical & Environmental

• Degree of protection: IP65

• Thermal class: F

• Ambient temperature: −20 … +40 °C

• Weight: 4.004 kg

Lubrication

• Oil type: CLP 220 mineral oil

• Oil quantity: 0.12 l
