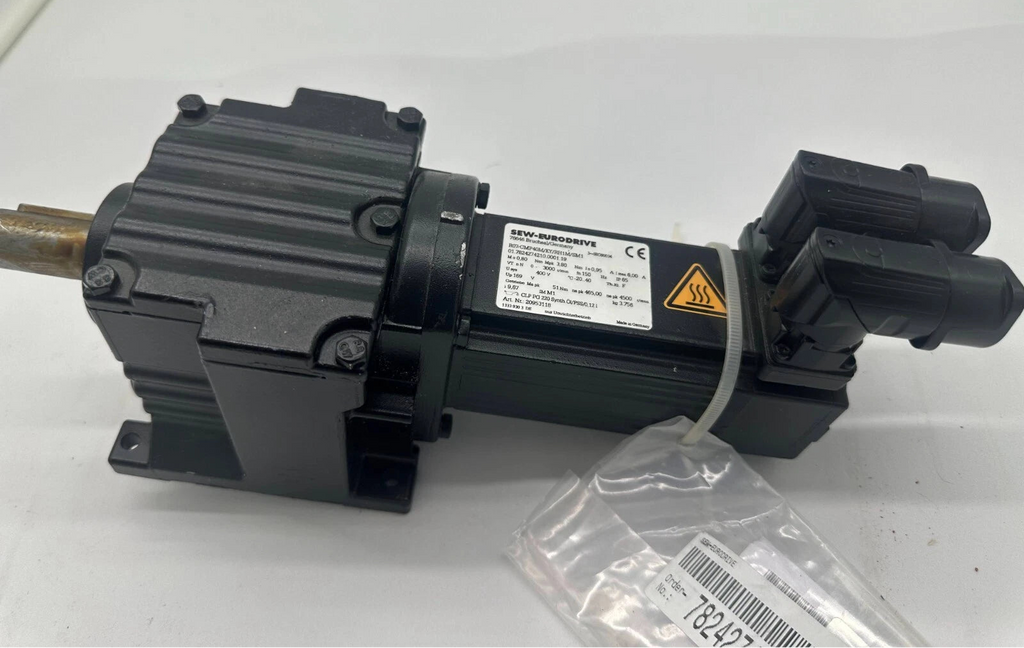

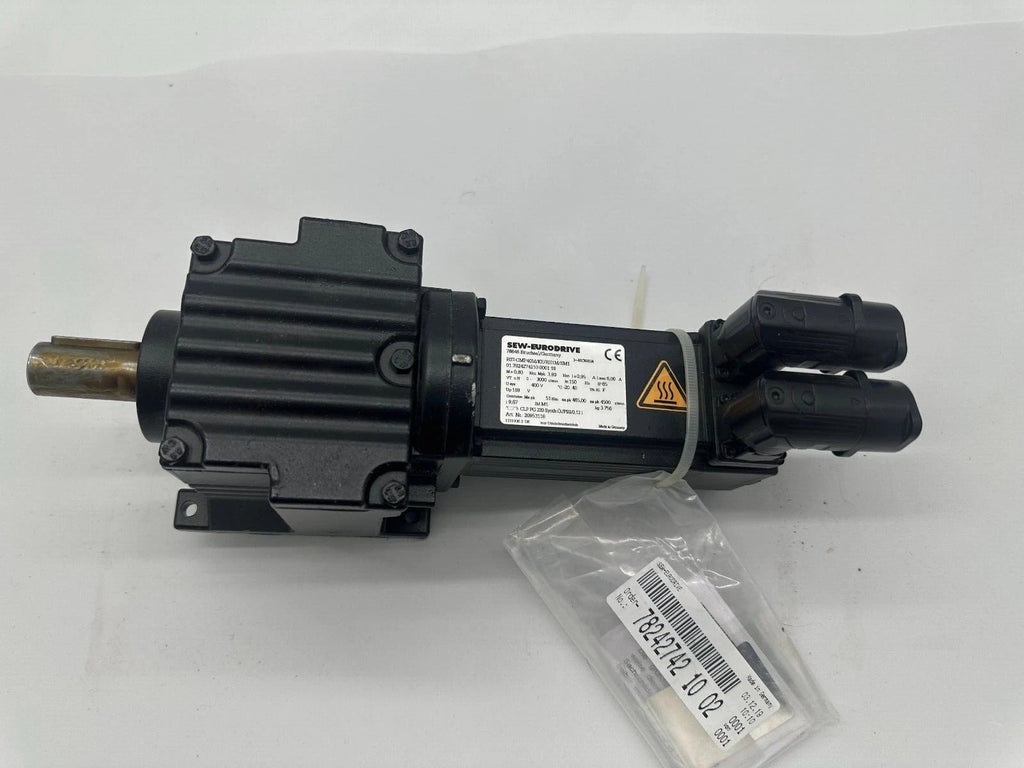

Sew-Eurodrive R07 CMP40M/KY/RH1M/SM1 CMP40MKYRH1MSM1 servo motor

New. Without original packaging. Warehousing

The SEW-EURODRIVE R07 CMP40M servo gearmotor is an integrated drive system engineered for demanding industrial automation environments. This unit combines a CMP40M permanent-magnet servo motor with an R07 inline helical gearbox, providing smooth torque transmission, high efficiency, and long service life.

With a gear ratio of 9.67, the drive delivers a rated output torque of 51 Nm while supporting motor speeds up to 3000 rpm and maximum input speeds of 4500 rpm. The motor operates on a 400 V system, is inverter-duty only, and features IP65 protection, ensuring reliable operation in industrial conditions.

Factory-filled with CLP PG 220 synthetic gear oil, this servo gearmotor is maintenance-friendly and suitable for continuous operation. Its compact design and low mass make it easy to integrate into machines where space and precision are critical.

Key Technical Specifications

Motor

• Rated torque (Mo): 0.80 Nm

• Peak torque (Mpk): 3.80 Nm

• Rated current (Io): 0.95 A

• Maximum current (Imax): 6.00 A

• Speed range: 0 – 3000 rpm

• Frequency: 150 Hz

• Supply system voltage: 400 V

• Up: 169 V

• Protection class: IP65

• Thermal class: F

• Ambient temperature: −20 … +40 °C

• Operation: Inverter duty only (nur Umrichterbetrieb)

Gear Unit Data

• Gear unit type: R07

• Gear ratio: i = 9.67

• Rated output torque: 51 Nm

• Max. input speed: 4500 rpm

• Max. output speed: 465 rpm

• Mounting position: IM M1

• Lubricant: CLP PG 220 (synthetic oil)

• Weight: 3.756 kg

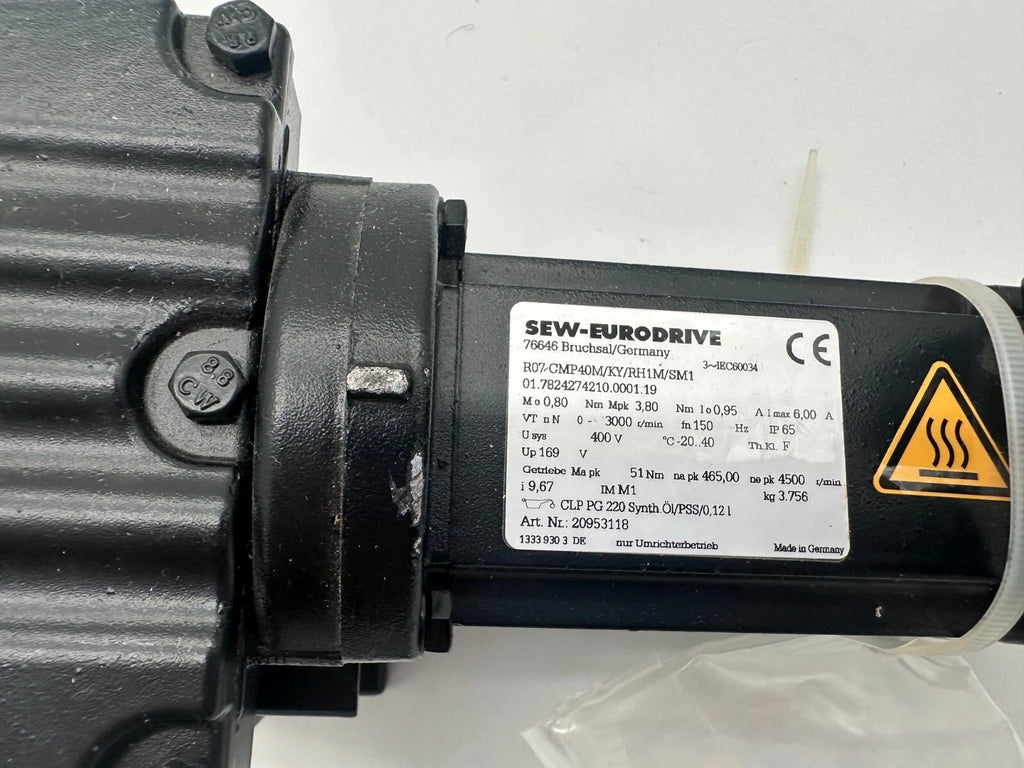

Identification

• Article number: 20953118

• Serial number: 01.7824274210.0001.19

• Standard: IEC 60034
