SEW-EURODRIVE R17 CMP50S/KY/RH1M/SM1 Servo Gearmotor i=47.44 IP65 400V

NEW

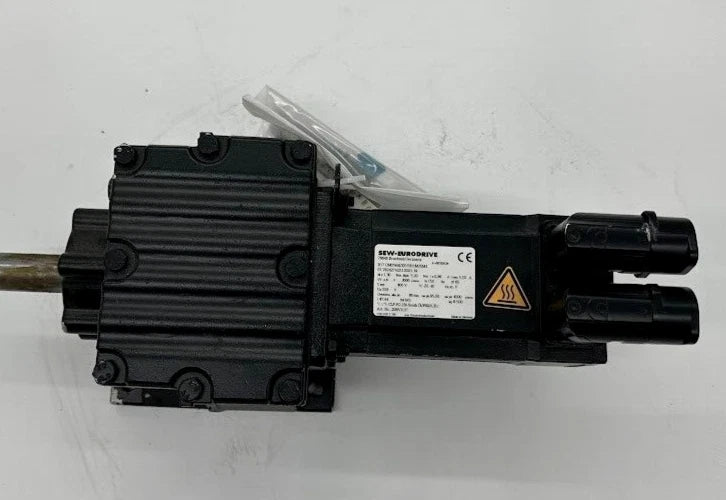

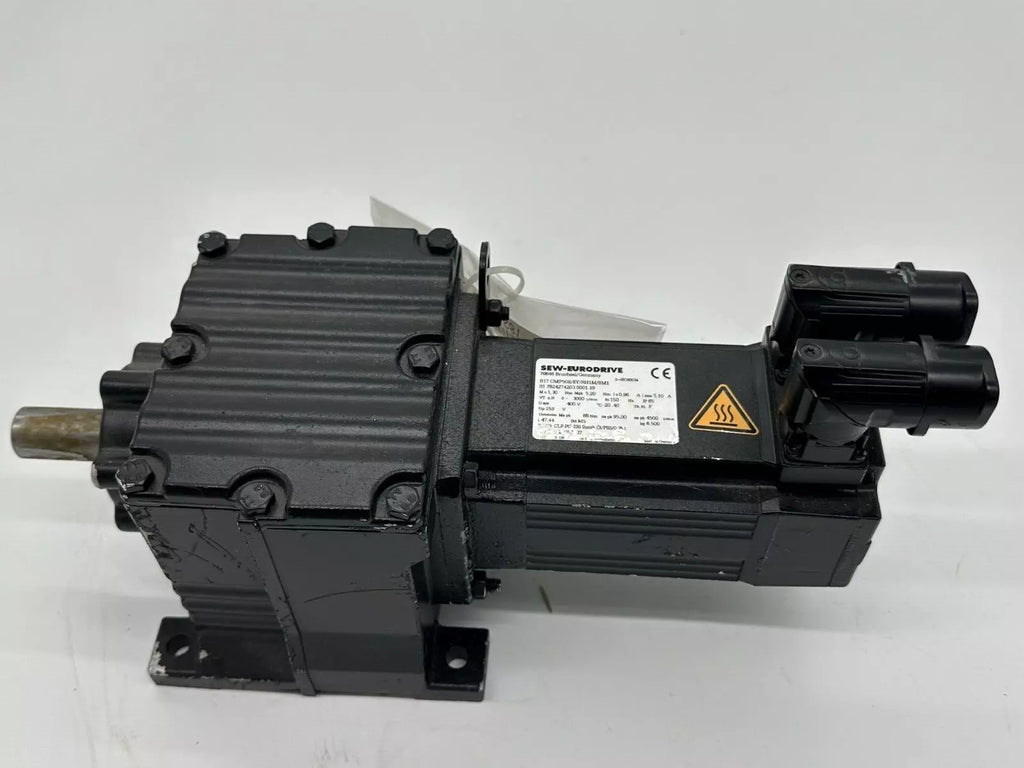

The SEW-EURODRIVE R17 CMP50S/KY/RH1M/SM1 is a servo gearmotor that integrates a CMP50S permanent-magnet servo motor with an R17 helical gearbox.
The unit is designed exclusively for inverter operation (Umrichterbetrieb) and is suitable for precision motion-control tasks requiring controlled torque, accurate speed regulation, and reliable continuous operation.

Typical applications include industrial automation, conveyor systems, handling and assembly machines, servo-driven axes, and packaging equipment.

Manufactured in Bruchsal, Germany, the gearmotor complies with IEC 60034, carries CE marking, and features a robust IP65 enclosure for industrial environments.

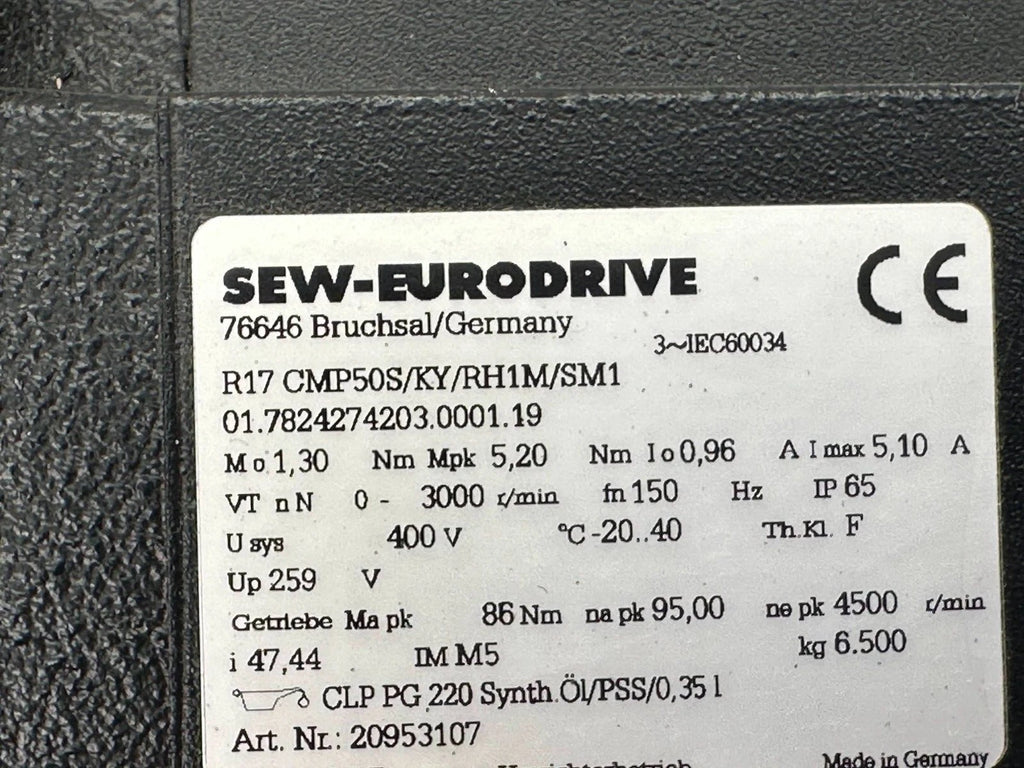

Full Nameplate Data

Manufacturer

• Brand: SEW-EURODRIVE

• Address: 76646 Bruchsal, Germany

• Standard: 3~ IEC 60034

• Certification: CE

• Country of origin: Made in Germany

Type / Configuration

• Gearbox series: R17

• Servo motor type: CMP50S

• Full configuration: R17 CMP50S/KY/RH1M/SM1

• Motor technology: Permanent-magnet servo motor

Identification Numbers

• ID code: 01.7824274203.0001.19

• Article No.: 20953107

Motor Electrical & Performance Data

Torque (Motor)

• M₀ (Rated torque): 1.30 Nm

• Mpk (Peak motor torque): 5.20 Nm

Current

• I₀: 0.96 A

• Imax: 5.10 A

Speed / Frequency

• Speed range: 0 – 3000 rpm

• Rated frequency (fn): 150 Hz

Voltage

• System voltage (Usys): 400 V

• DC link voltage (Up): 259 V

Gearbox Data

• Gearbox peak torque (Ma pk): 86 Nm

• Gear ratio: i = 47.44

• Output speed limits:

  • na pk: 95 rpm

  • ne pk: 4500 rpm

• Mounting position: IM M5

Mechanical & Environmental

• Degree of protection: IP65

• Thermal / insulation class: F

• Ambient temperature: −20 … +40 °C

• Weight: 6.500 kg

Lubrication

• Oil type: CLP PG 220 synthetic oil

• Oil quantity: 0.35 l
