SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW
  • SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW
  • SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW
  • SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW
  • SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW
  • SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW
  • SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW
SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW

SEW MOVIDRIVE B MDX61B0040-5A3-4-00 + DEH21B + DFP21B | 400 V Frequency Inverter | SEW

$1,550.00

Data Processing Order: 2-5 Days

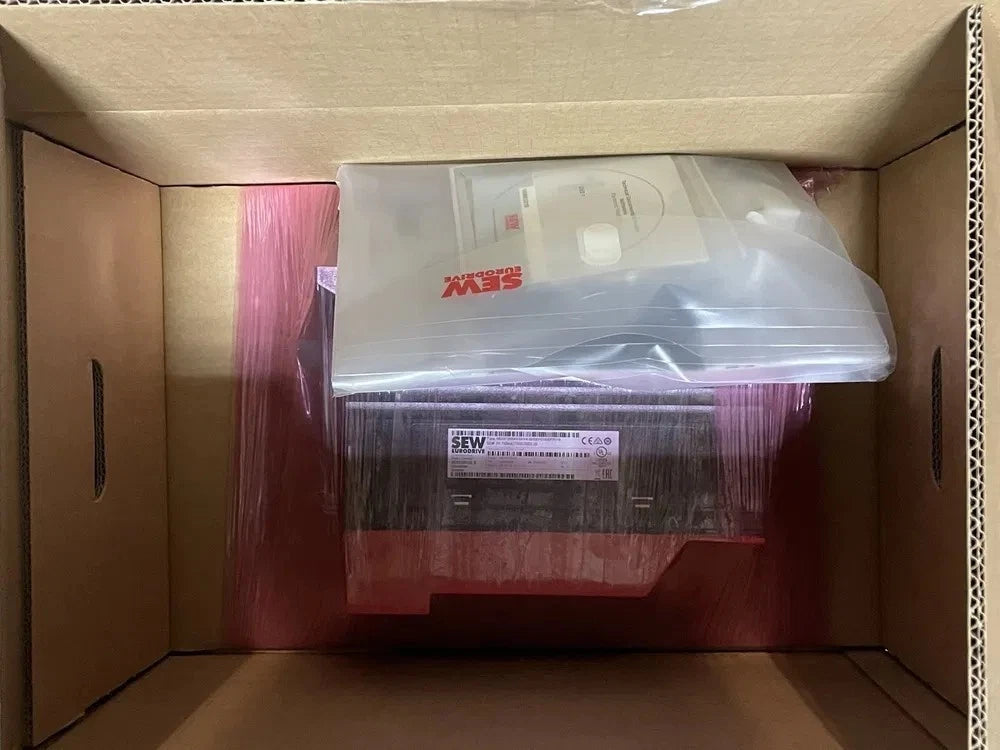

NEW IN BOX

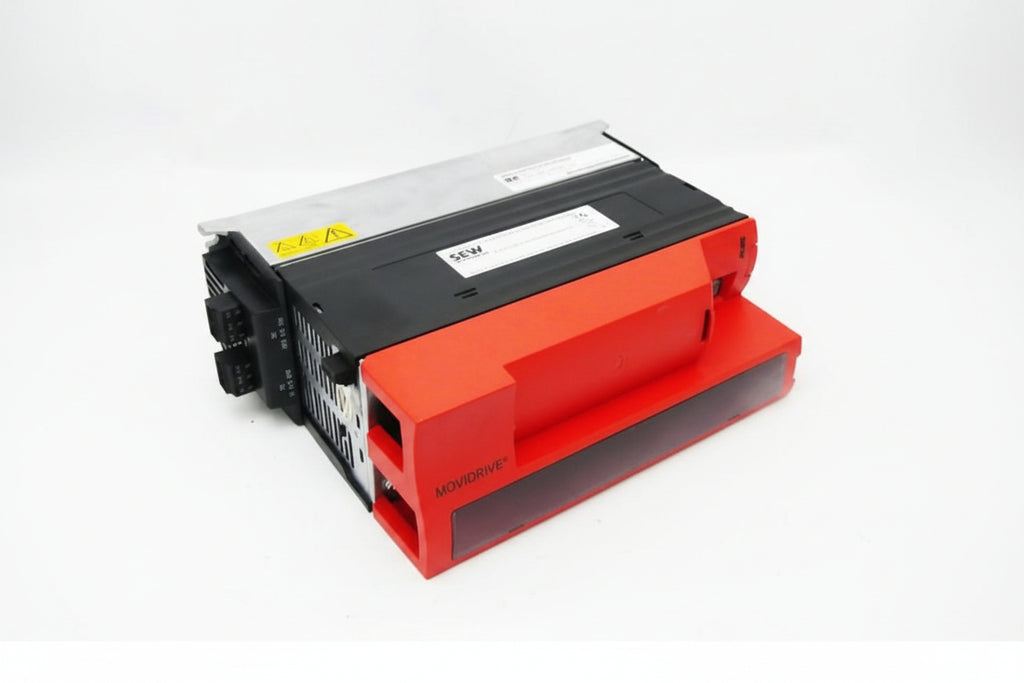

The SEW-EURODRIVE MOVIDRIVE® B MDX61B0040-5A3-4-00 is a high-performance industrial frequency inverter (VFD) designed for precise speed and torque control of AC motors in automation and motion control systems.

⚠️ Important:

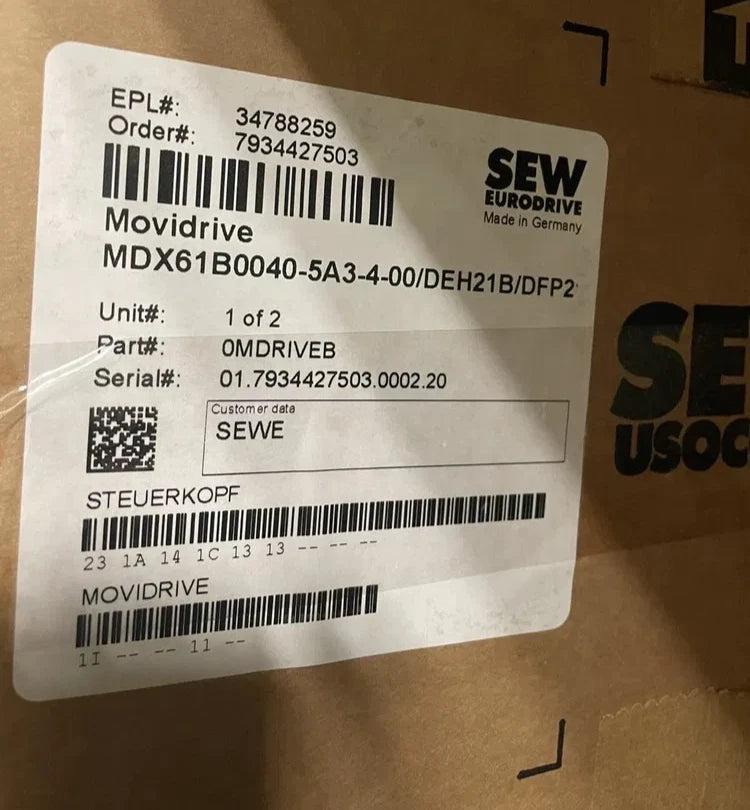

This unit is supplied with installed option modules DEH21B and DFP21B, as confirmed by the configuration label (…/DEH21B/DFP21B).
The previous partial marking was due to a torn label, but the installed communication card is DFP21B.

Installed Configuration :

  • Base inverter: MDX61B0040-5A3-4-00

  • Control head: DEH21B (Steuerkopf / control module)

  • Fieldbus communication module: DFP21B (installed)

What these options mean:

  • DEH21B – Advanced SEW control head enabling full drive parameterization, diagnostics, and control logic handling.

  • DFP21B – PROFIBUS-DP fieldbus interface module, allowing direct integration of the inverter into PLC-based automation systems (Siemens, etc.).

This configuration is highly desirable for industrial systems where SEW drives are controlled via PROFIBUS networks.

Key Features:

  • Industrial frequency inverter (VFD)

  • SEW MOVIDRIVE® B / MDX61B series

  • Full model: MDX61B0040-5A3-4-00

  • Installed options: DEH21B + DFP21B (PROFIBUS-DP)

  • 3-phase industrial supply

  • Precise speed & torque control for AC motors

  • Designed for continuous cabinet operation (IP20)

  • Long service life, robust SEW build quality

Technical Specifications :

  • Input voltage: AC 3×380…500 V

  • Frequency: 50 / 60 Hz

  • Input current: approx. 8.6 A @ 400 V

  • Output voltage: 0…500 V AC

  • Output current: 9.5 A @ 400 V

  • Apparent power: 6.6 kVA

  • Protection class: IP20

  • Operating temperature: 0…+50 °C

Typical Applications:

  • Conveyor and intralogistics systems

  • Packaging and production machinery

  • Automated material handling

  • SEW motor-gearbox drive systems

  • Industrial plants using PROFIBUS-DP control architecture

  • Retrofit / replacement of existing MOVIDRIVE® B installations
