SEW MOVIDRIVE B MDX61B0075-5A3-4-0T + DEH11B + DFE32B | 400 V Frequency Inverter

NEW IN BOX

The SEW-EURODRIVE MOVIDRIVE® B MDX61B0075-5A3-4-0T is a high-performance industrial frequency inverter (VFD) for precise speed and torque control of three-phase AC motors.

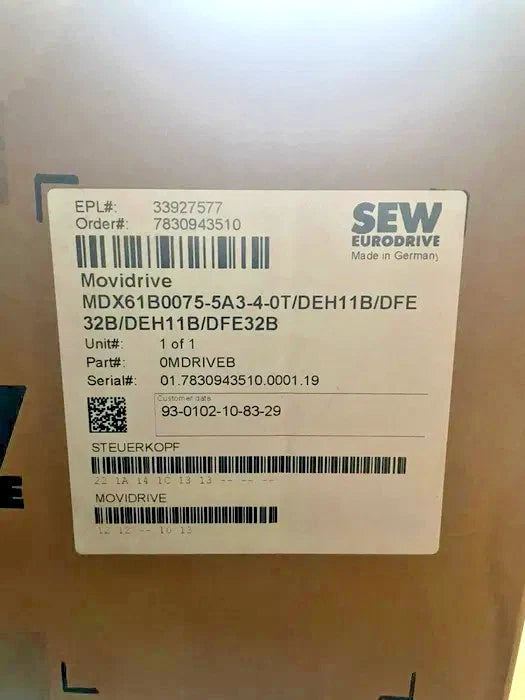

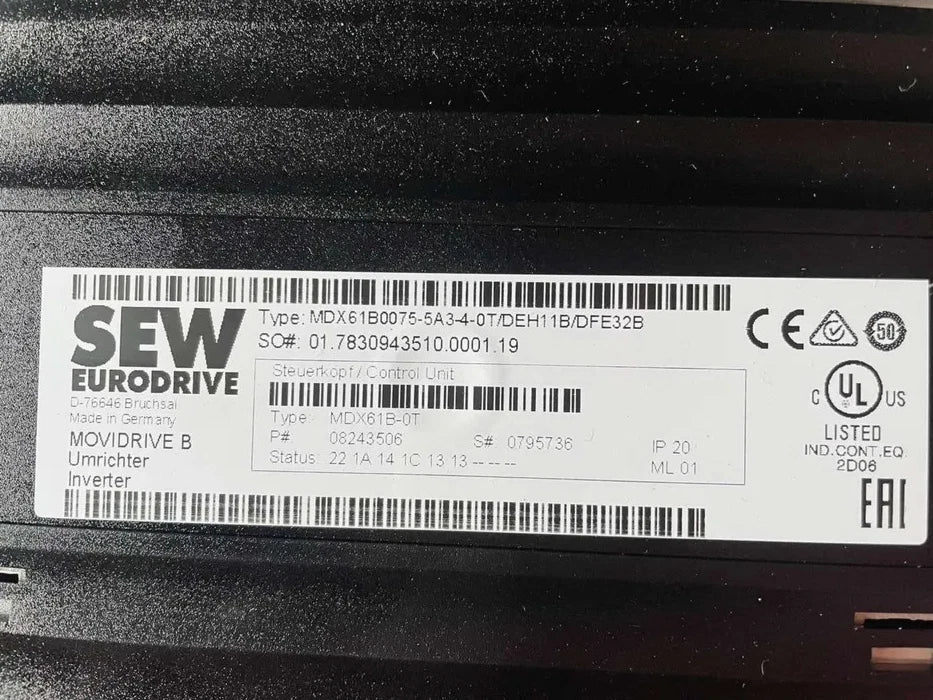

This unit is supplied with installed option modules DEH11B and DFE32B, exactly as shown on the original SEW factory labels (…/DEH11B/DFE32B).

The DEH11B functions as the control head (Steuerkopf / control unit), enabling full parameterization, diagnostics, and drive control.
The DFE32B is an installed fieldbus communication interface, allowing the inverter to be integrated into PLC-based automation systems and industrial networks.

This configuration is commonly used in conveyor systems, intralogistics, packaging machinery, production lines, pumps, and fans, where SEW drives are networked to higher-level control systems.

Installed Configuration (Important):

• Base inverter: MDX61B0075-5A3-4-0T

• Control module: DEH11B (Steuerkopf / control head)

• Communication module: DFE32B (fieldbus interface, installed)

Key Features:

• Industrial frequency inverter (VFD)

• Series: MOVIDRIVE® B (MDX61B)

• Full model: MDX61B0075-5A3-4-0T

• Installed options: DEH11B + DFE32B

• 3-phase industrial power supply

• Accurate speed and torque control for AC motors

• Control-cabinet installation, IP20

• Proven SEW reliability and long service life

Technical Specifications :

• Input voltage: AC 3 × 380…500 V

• Frequency: 50 / 60 Hz

• Rated output power: approx. 7.5 kW

• Output voltage: 0…500 V AC

• Output current: approx. 16 A @ 400 V

• Apparent power: 11.2 kVA

• Protection class: IP20

• Operating temperature: 0…+50 °C

Typical Applications:

• Conveyor and intralogistics systems

• Packaging and production machinery

• Industrial pumps and fans

• SEW motor-gearbox drive solutions

• Retrofit or replacement of existing MDX61B drives with fieldbus communication
