Siemens SIMOTICS S 1FK7100-2AF71-1UA0-Z Servo Motor 314V IP64 Resolver

NEW. WITHOUT ORIGINAL BOX

The Siemens SIMOTICS S 1FK7100-2AF71-1UA0-Z is a three-phase AC servo motor from the SIMOTICS S (1FK7) series, engineered for high-torque, high-dynamics motion control in industrial automation.
The motor is equipped with resolver feedback and is designed for operation with Siemens servo drive systems, enabling precise control of speed, torque, and position.

This model is commonly used in CNC machinery, heavy-duty automation axes, packaging equipment, production lines, and industrial handling systems where high torque density and reliability are essential.

The motor complies with EN 60034, carries CE and EAC certifications, and features a robust IP64 enclosure suitable for industrial environments.

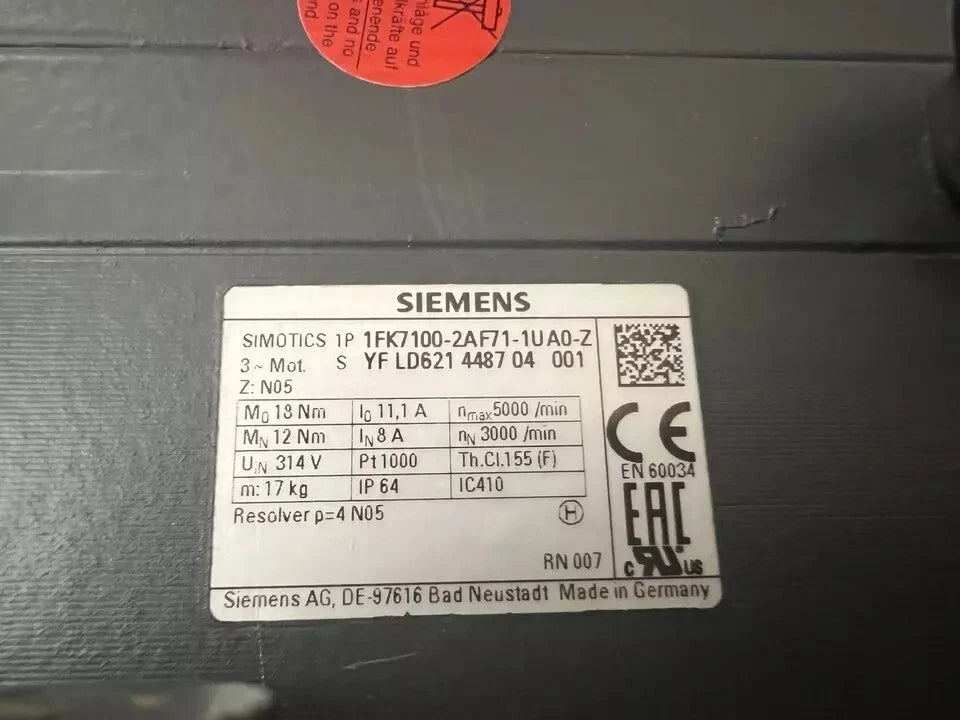

Full Nameplate Data (decoded)

Manufacturer

• Brand: Siemens

• Product family: SIMOTICS S

• Standard: EN 60034

• Certifications: CE, EAC

• Manufacturer address: Siemens AG, DE-97616 Bad Neustadt

• Country of origin: Made in Germany

Type / Identification

• Motor type: 1FK7100-2AF71-1UA0-Z

• Motor category: 3-phase AC servo motor

• Special version code: Z: N05

Electrical & Performance Data

Torque

• M₀: 18 Nm

• Mₙ (Rated torque): 12 Nm

Current

• I₀: 11.1 A

• Iₙ: 8 A

Speed

• nₙ (Rated speed): 3000 rpm

• nₘₐₓ: 5000 rpm

Voltage

• Uₙ: 314 V

Feedback & Thermal

• Feedback system: Resolver (p = 4, N05)

• Temperature sensor: Pt1000

• Thermal / insulation class: 155 (Class F)

Protection & Cooling

• Degree of protection: IP64

• Cooling method: IC410

Mechanical Data

• Weight: 17 kg
