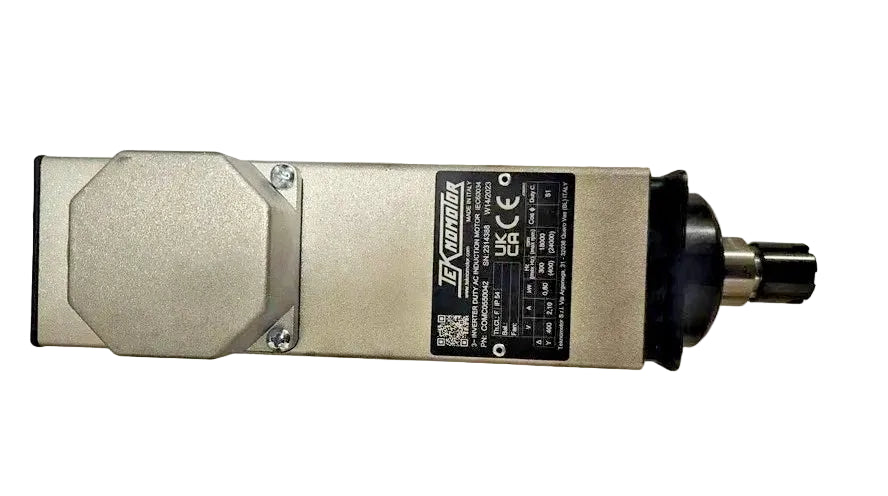

Teknomotor COMC0550042 0.8kW Inverter Duty AC Induction Motor – 400V, 18,000 RPM, IP54
Data Processing Order: 1-5 Days
NEW.Without original box
eknomotor COMC0550042 is a high-speed 3-phase inverter duty AC induction motor designed for CNC and industrial machining applications. Manufactured in Italy, this motor is engineered for variable frequency drive (VFD) operation with extended speed capability.

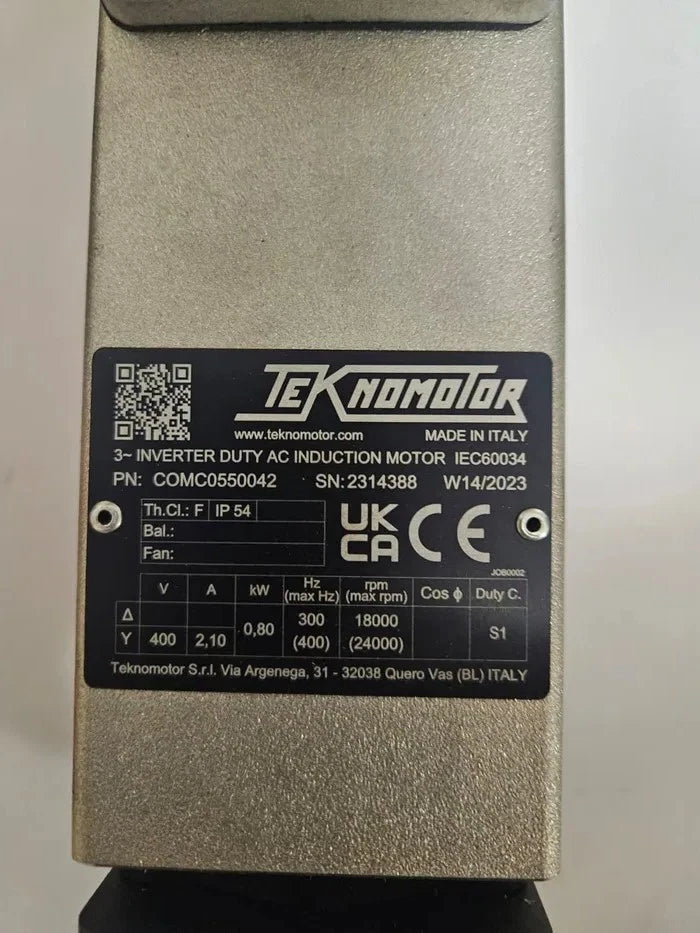

Manufacturer Information
-
Brand: Teknomotor
-
Manufacturer: Teknomotor S.r.l.
-
Country of Origin: Italy
-
Model / P/N: COMC0550042
-
Serial Number: 2314388
-
Production Date: Week 14 / 2023
-
Standard: IEC 60034
-
Made in Italy
Technical Specifications
| Parameter | Specification |
|---|---|
| Motor Type | 3~ Inverter Duty AC Induction Motor |
| Rated Voltage (Y) | 400 V |
| Rated Current | 2.10 A |
| Rated Power | 0.80 kW |
| Frequency Range | 300 Hz (max 400 Hz) |
| Rated Speed | 18,000 rpm (max 24,000 rpm) |
| Insulation Class | F |
| Protection Class | IP54 |
| Duty Cycle | S1 (Continuous Duty) |
| Cooling | Integrated fan (fan-cooled design) |
Product Overview
The Teknomotor COMC0550042 is a precision high-speed spindle motor designed for CNC routing, milling, engraving, and automated machining systems. Built for inverter (VFD) control, it allows stable operation at elevated frequencies up to 400 Hz, enabling speeds up to 24,000 RPM.
Suitable for:
-
CNC routers
-
Woodworking machinery
-
Aluminum machining
-
Plastic processing
-
High-speed milling applications
-
Automated production systems
Key Features
-
Inverter-duty design for VFD operation
-
High-speed capability up to 24,000 RPM
-
Continuous duty (S1) rated
-
IP54 protected housing
-
Insulation class F
-
Precision Italian manufacturing
-
Compact industrial spindle configuration
