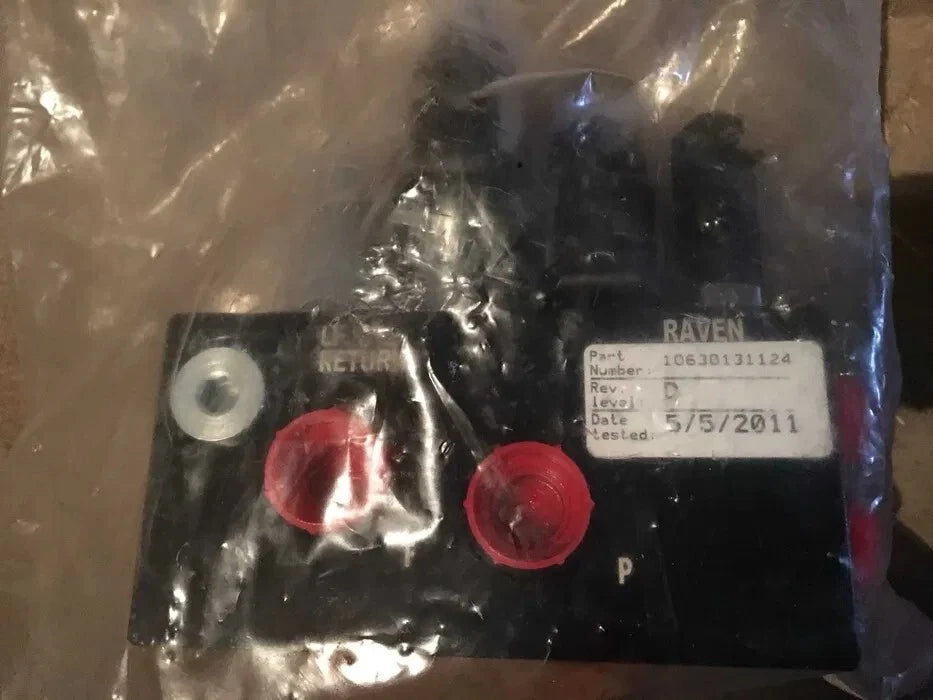

RAVEN Hydraulic Valve Manifold Block 10630131124 – L.F. Cylinder Return

NEW. STORAGE WAREHOUSE

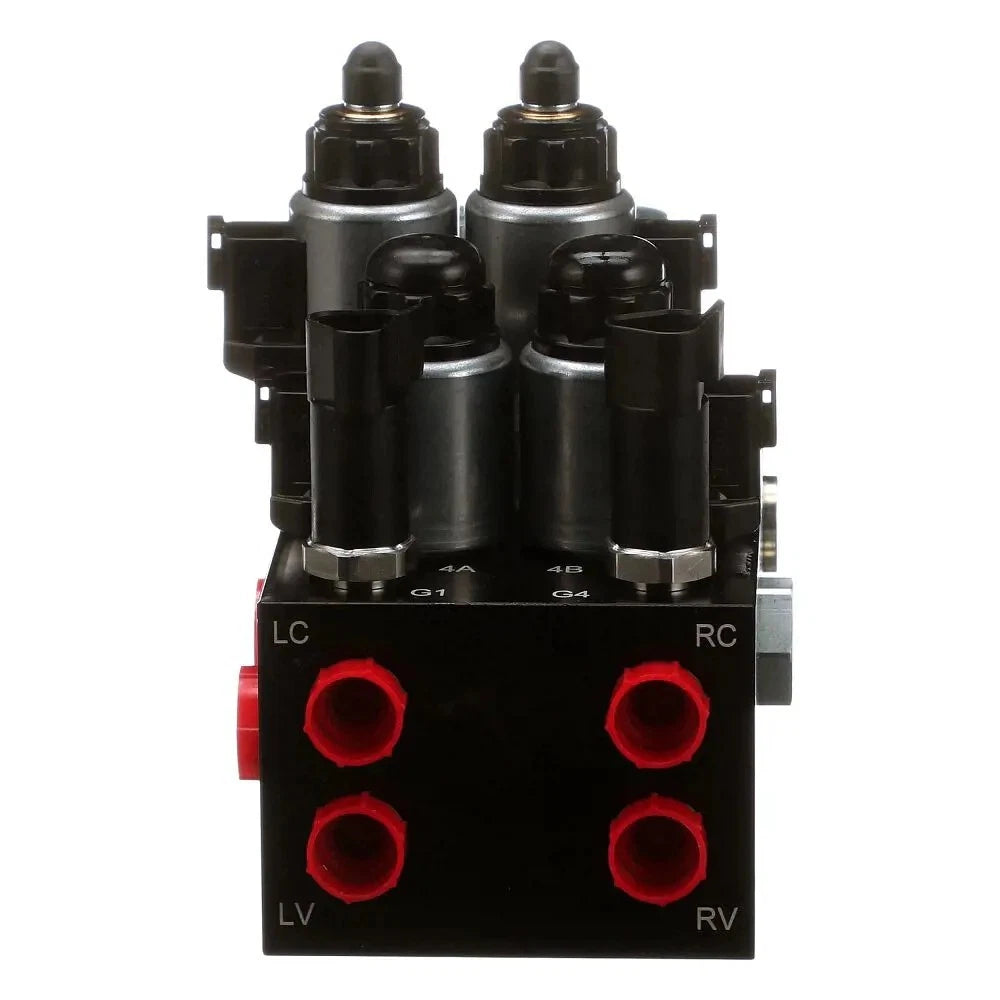

The RAVEN Hydraulic Valve Manifold Block (Part No. 10630131124) is a precision hydraulic control assembly designed for fluid power distribution and regulated cylinder return applications.

This compact manifold integrates multiple hydraulic cartridge valves and ports into a single machined block, ensuring reliable pressure and flow control in industrial and mobile hydraulic systems.

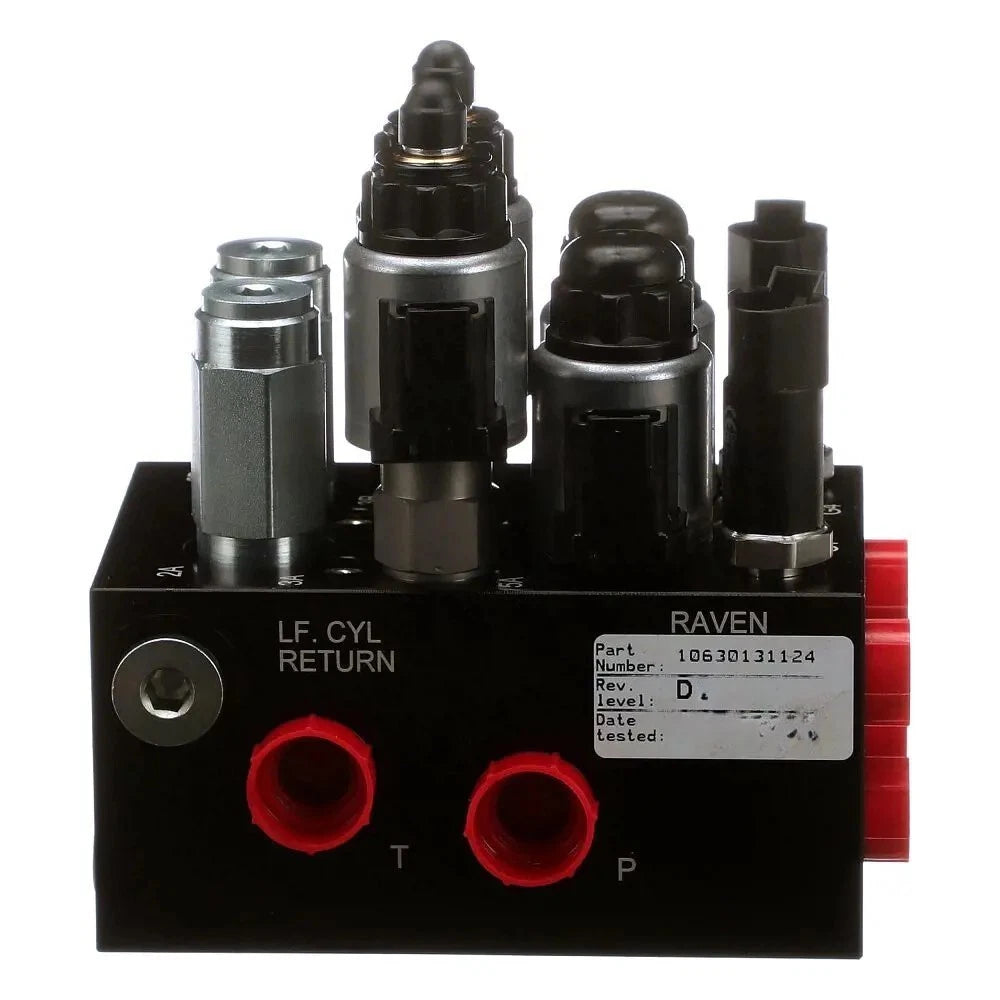

Marked ports include:

• P – Pressure input

• T – Tank return

• L.F. CYL RETURN – Low-flow cylinder return

This type of hydraulic block is commonly used in agricultural equipment, industrial machinery, mobile hydraulic systems, and automated fluid control units.

The integrated cartridge valves provide stable performance, reduced leak points, and simplified hydraulic system design.

Key Specifications

• Manufacturer: RAVEN

• Part Number: 10630131124

• Type: Hydraulic valve manifold block

• Function: Pressure distribution & cylinder return control

• Ports: P (Pressure), T (Tank), LF Return

• Construction: Machined aluminum/steel hydraulic block

• Integrated cartridge valves

Technical Highlights

• Compact hydraulic assembly

• Integrated pressure and return management

• Reduced external piping

• Industrial-grade machining

• Suitable for continuous-duty hydraulic systems

Typical Applications

• Agricultural machinery

• Hydraulic sprayer systems

• Mobile hydraulic platforms

• Industrial automation equipment

• Hydraulic cylinder control systems

• Fluid power control units
